4CH 1080p 4G GPS SD Card MDVR (Sensor-Compatible) (Enhanced Model)
Advanced Mobile Recording with Sensor Expansion and Live Fleet Monitoring.

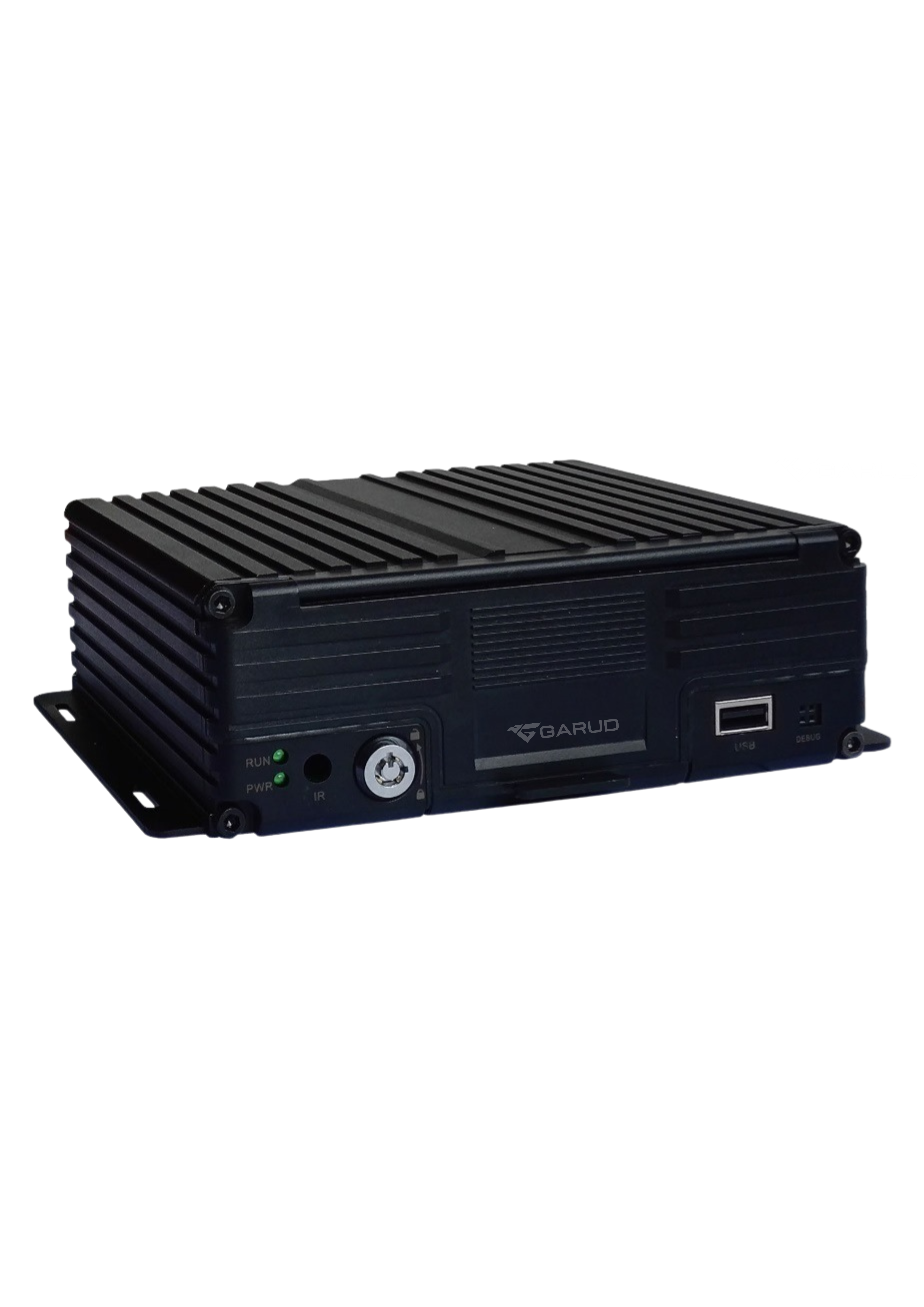

The GDT-ENH-002 is a rugged mobile DVR designed for high-definition video capture with advanced vehicle analytics. Built to support AHD/TVI/CVI/IPC/Analog input formats, this 4-channel system enables 1080p live preview and synchronized audio-video recording.
It offers seamless 4G, GPS, and WiFi capabilities and can integrate with additional sensors like temperature, fuel, or door status. The built-in G-sensor and reverse assistance features improve fleet safety, while an intelligent file system ensures secure, uninterrupted data storage on dual SD cards up to 512GB each. This device is an ideal solution for logistics, passenger transport, and law enforcement.
Sensor-compatible with 4CH video and live GPS tracking
Dual SD card storage up to 2×512GB
Integrated G-sensor and smart power management
AHD/TVI/CVI/IPC/Analog compatibility
Supports 3G/4G transmission and WiFi module (optional)
Auto-recovery and encrypted file system
VGA and aviation AV outputs for flexible viewing
Compatible with Android/iOS monitoring platforms
Category | Details |
|---|---|
Video Input | 4CH AHD/TVI/CVI/IPC/Analog |
Video Output | 1CH VGA + 1CH Aviation AV out |
Video Resolution | 1080P/720P/960H/D1/CIF |
Video Compression | H.264 / H.265 / Plus formats |
Decoding Capability | 4CH 1080P |
Audio Format | G711A, G711U, G726, ADPCM, IMA |
Audio Recording | Synchronized with video |
Recording Modes | Auto / Alarm Triggered |
Data Storage | Dual SDXC slots (up to 2 x 512GB), encrypted with bad sector detection |
Wireless Interfaces | 3G/4G LTE, WiFi (optional) |
GPS/GLONASS | Supported, fast positioning, compliant with JT/T794-2011 |
Sensor Integration | Compatible with additional vehicle sensors |
G-Sensor | Built-in to monitor vehicle dynamics |
System Interface | GUI with mouse/remote control, Chinese/English |
Playback Options | Local 4CH playback, video inquiry by channel/type |
Firmware Upgrade | USB / SD / Remote / Emergency |
Power Supply | 8V–36V DC, Smart Power Management, UPS-ready |
Power Consumption | Max: 18W @ 12V; Standby: 8.5mA |
Operating Temp. | -20°C to +70°C |
Device Dimensions | 142mm x 153mm x 33mm |
Storage Estimate | 1080P: ~1GB/h/channel |
